Name: 10560Wh Home Energy Storage System Battery
Brand: YDESS
SKU: YD-DDGLSG48220
Price: 200 USD
Availability: InStock
Rating: 4 (10 reviews)

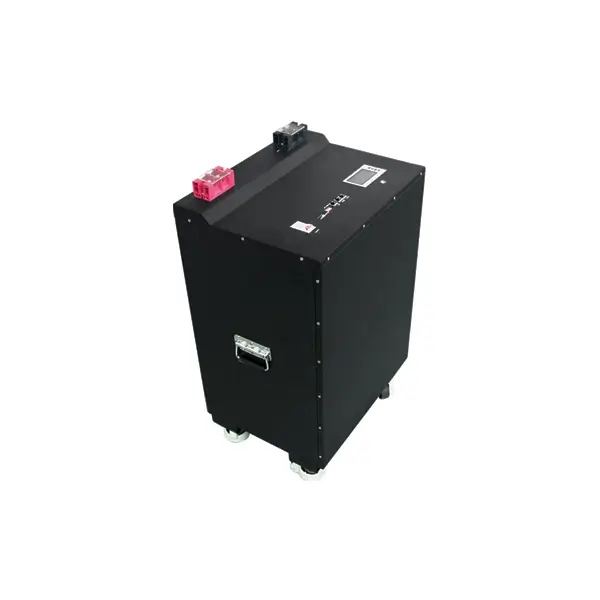

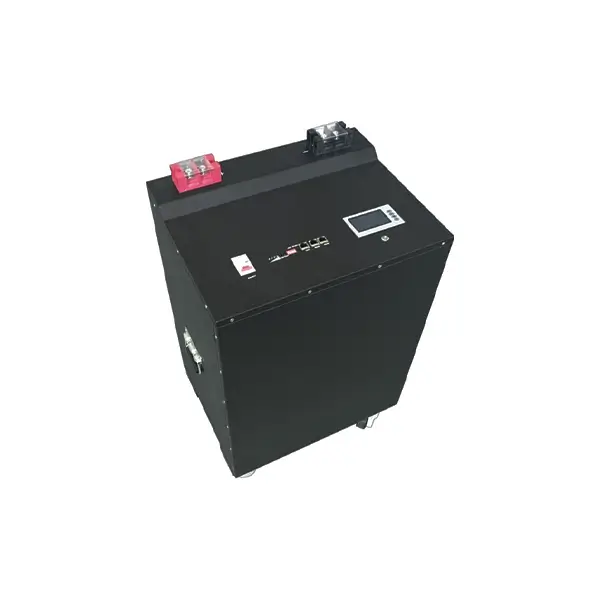

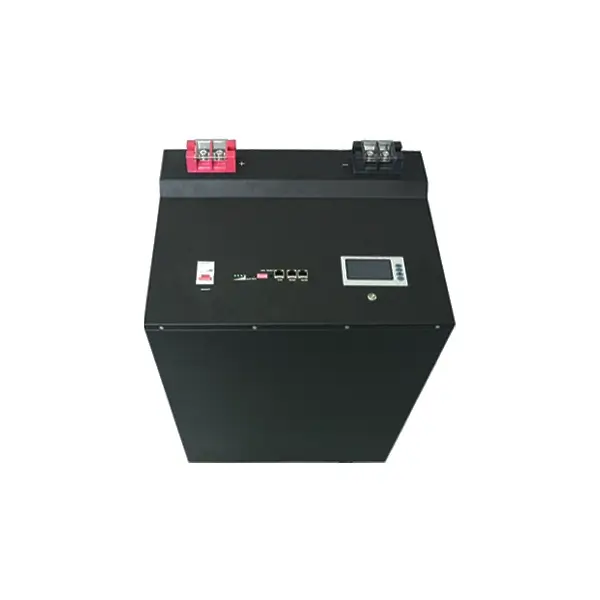

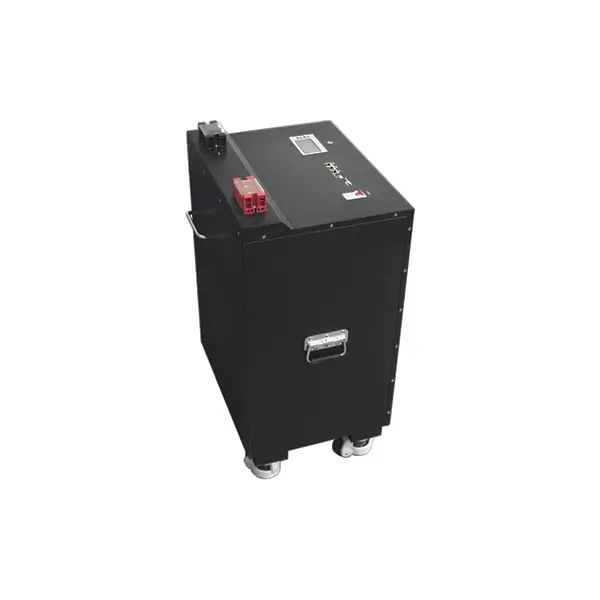

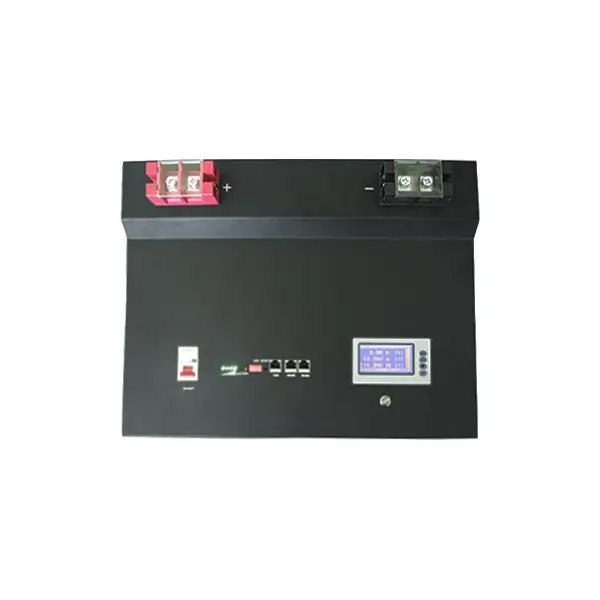

10560Wh Home Energy Storage System Battery

Model: YD-DDGLSG48220

Power:10560Wh

Battery: LiFePO4

Battery pack voltage range:40.5V～54V

Standard charging current: ≤200A

Standard discharge current: ≤200A

Installation method: Floor-standing/movable

Product Weight: ≈129Kg

Product Size: 49x38x68cm

Custom: ODM | OEM |

MOQ: 1 pcs

Inquire Now

Chat on WhatsApp

Tags: LiFePO4 , 5120Wh or more , 48V ,

.

Download 10560Wh Home Energy Storage System Battery Datasheet

Battery

Capacity:

10560Wh

Cell Chemistry:

LiFePO4

Cycle life:

>6000

Management System:

BMS, Over Voltage Protection,Short Circuit Protection

Battery parameter

Rated voltage

48V

Battery pack voltage range:

40.5V～54V

Combination:

1P15S

Standard charging current:

≤200A

Standard discharge current:

≤200A

System parameters

Maximum charging current:

200A

Conversion time (inverter):

10ms

AC output voltage:

220Vac

AC output frequency:

50/60Hz

Communication interface:

USB/RS485/WIFI/Bluetooth (optional)

Protection level:

IP20 (indoor)

Cooling method:

Natural cooling

Safety certification:

CE.RCM,UN383

Dimensions

Weight:129kg (284.39 lbs)

46kg

Length:

49cm (19.29in)

Width:

44.5cm (17.51in)

Height:

80.5cm (31.69in)

General

Warranty:

3+2 Years

Operating Usage Temperature:

Charging: 0~45”℃ (32 - 113F)
Discharging: -30~55°C (-22 - 131F)

What is the maximum capacity of a home energy storage system?

Generally speaking, there is no upper limit to the battery capacity of a home energy storage system, just like you can connect many batteries in series for use. However, we recommend that customers consider customizing the appropriate capacity of the home energy storage battery based on their budget and home electricity needs, rather than blindly pursuing the maximum capacity.
