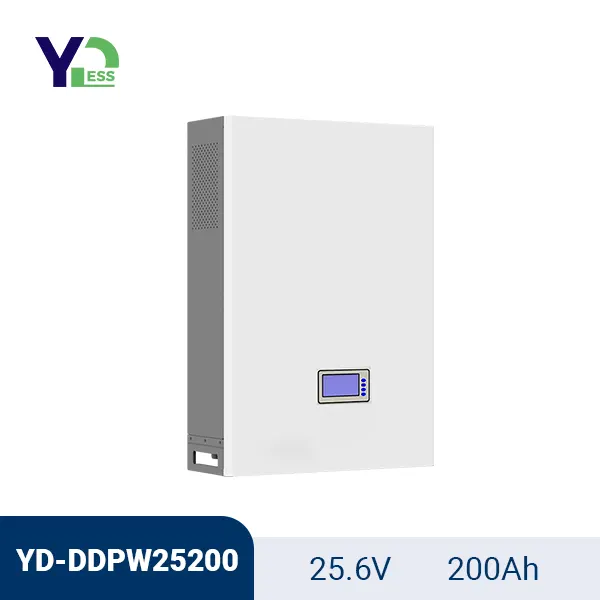

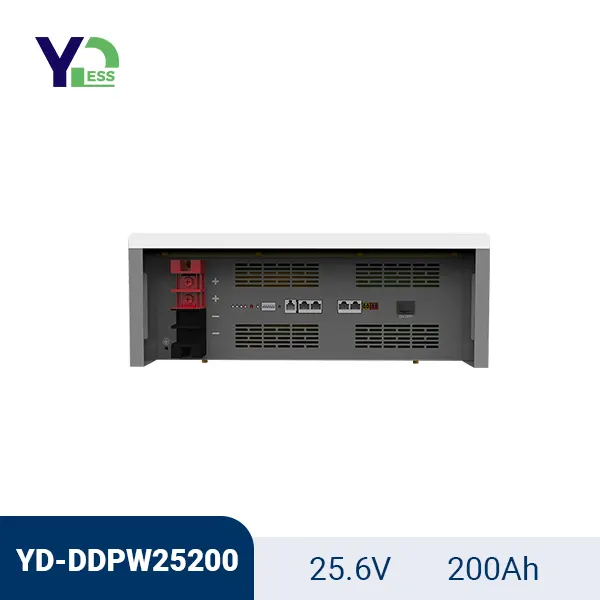

25.6V 200Ah Home Batteries Storage

    Model: YD-DDPW25200

    Power: 5120Wh

    Battery: LiFePO4

    Battery pack voltage range:DC21V~29.2V

    Standard charging current: ≤100A

    Standard discharge current: ≤100A

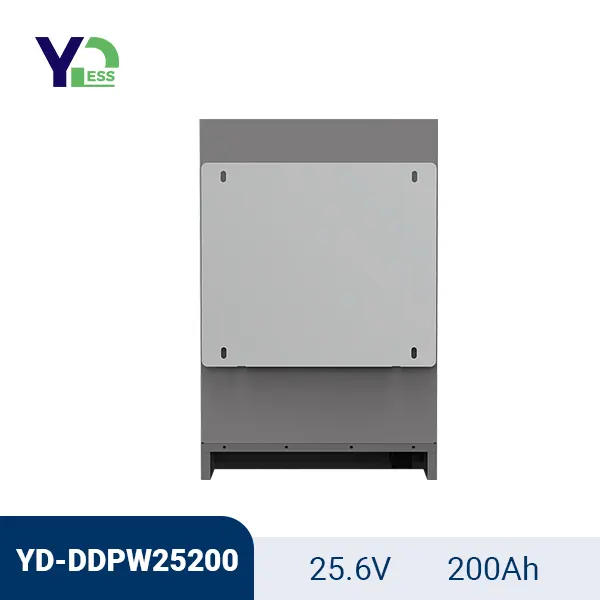

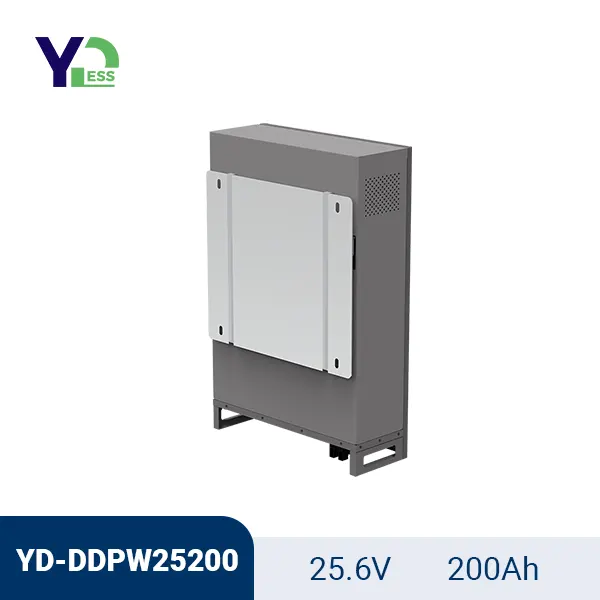

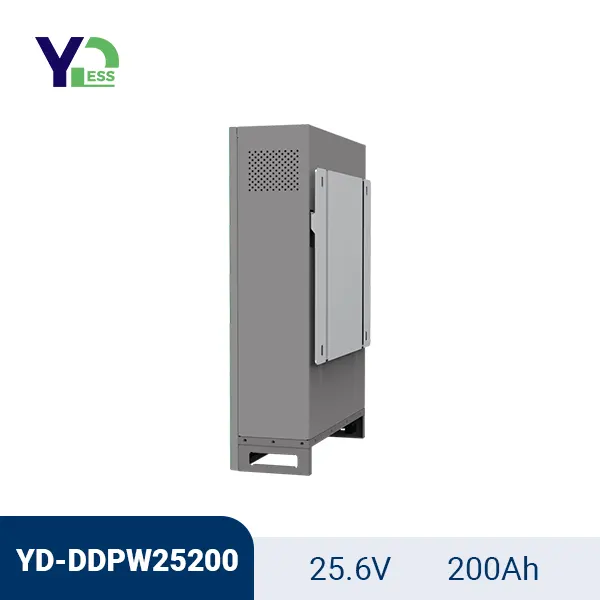

    Installation method: Wall-mounted

    Product Weight: ≈42Kg

    Product Size: 610*400*162mm


    Custom: ODM | OEM | Shape | Size

    MOQ: 1 pcs


Inquire Now

Tags: LiFePO4 , 5120Wh , 200Ah , 25.6V ,


Battery

Capacity:

5120Wh

Cell Chemistry:

LiFePO4

Cycle life:

>6000

Management System:

BMS, Over Voltage Protection,Short Circuit Protection

Battery parameter

Rated voltage

25.6V

Battery pack voltage range:

21V~29.2V

Combination:

1P8S

Standard charging current:

≤100A

Standard discharge current:

≤100A

Dimensions

Weight:

42kg(92.59lbs)

Length:

61cm (24.01in)

Width:

40cm (15.74in)

Height:

16.2cm (6.37in)

General

Warranty:

3+2 Years

Operating Usage Temperature:

Charging: 0~45”℃ Discharging: -30~55°C

Lead-acid batteries are already a very backward battery. They require frequent maintenance, have a slow charging speed, are very heavy, and have a low energy density. LiFePO4 batteries are superior to lead-acid batteries in all aspects, such as longer service life, higher energy density, faster charging speed, higher safety, lower maintenance requirements, better temperature resistance, more environmentally friendly, higher discharge efficiency, and lower self-discharge rate.
