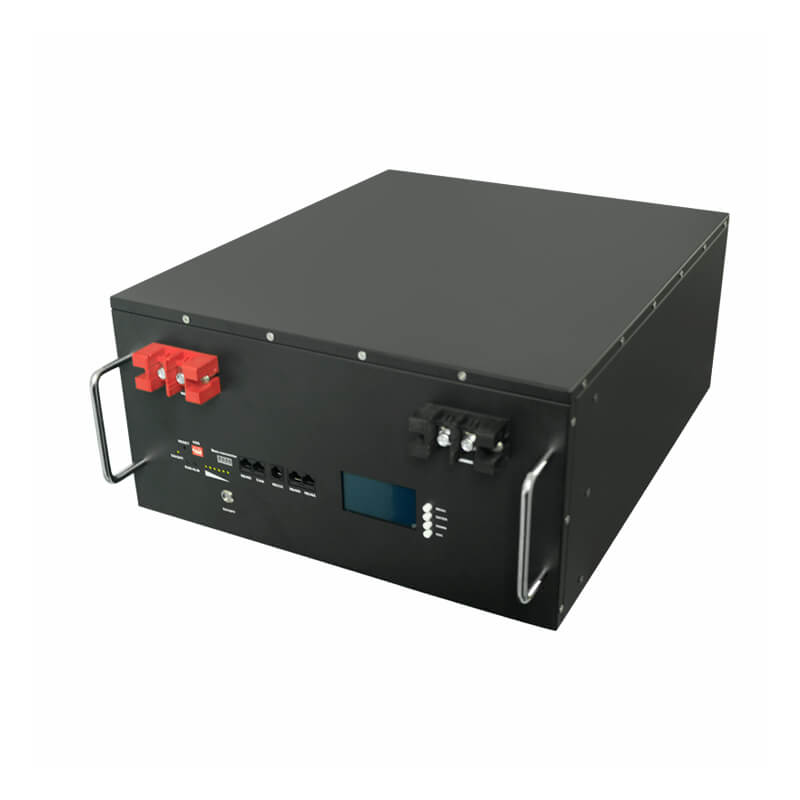

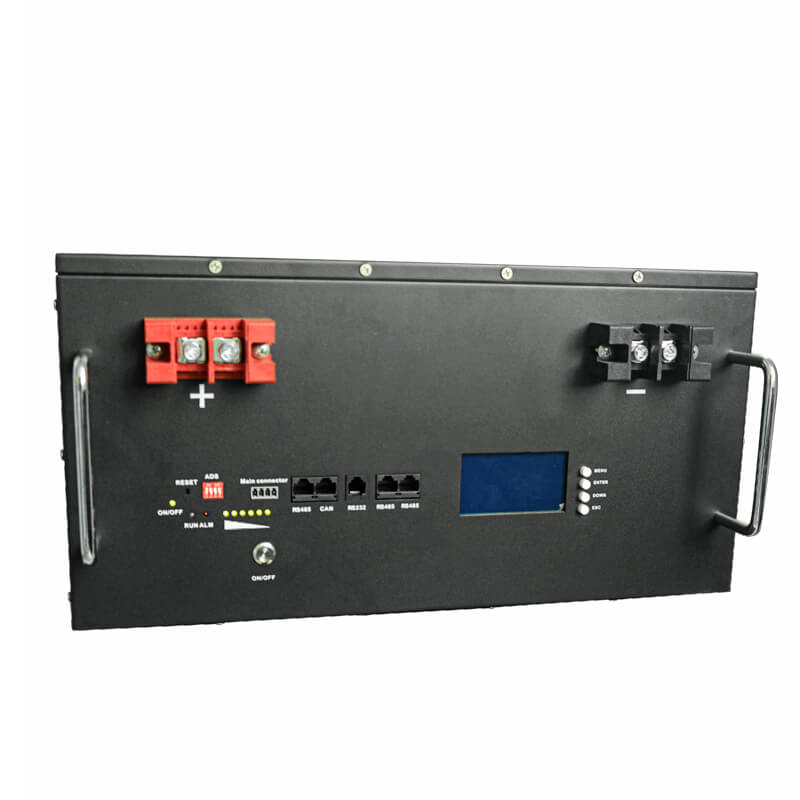

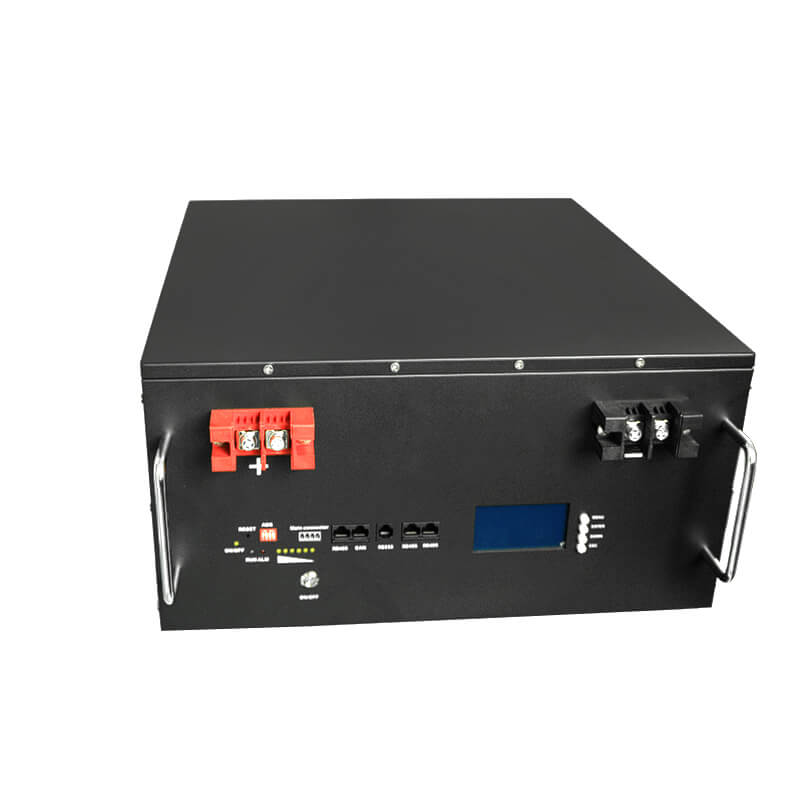

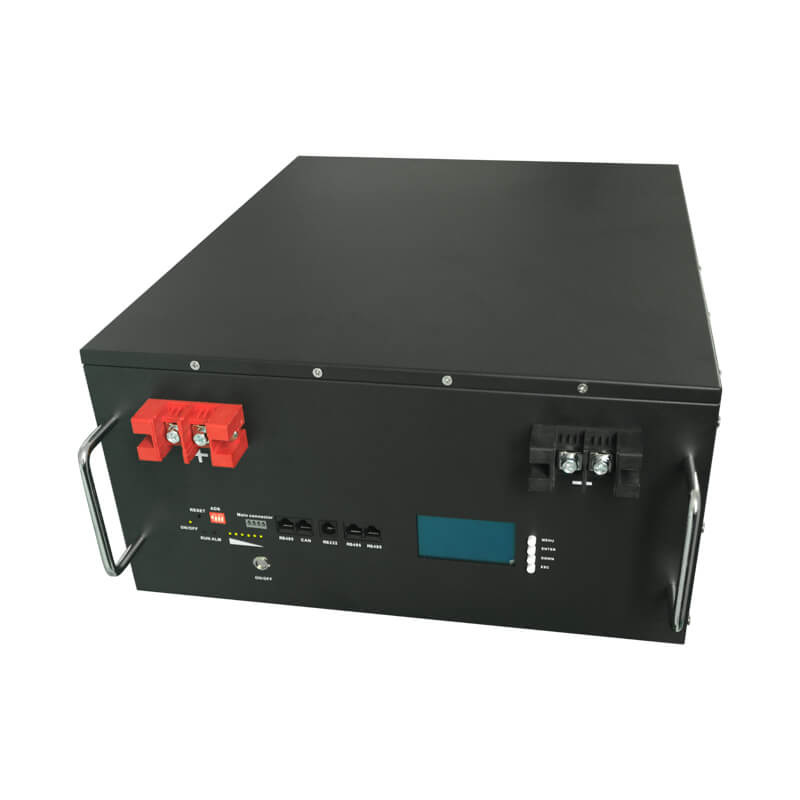

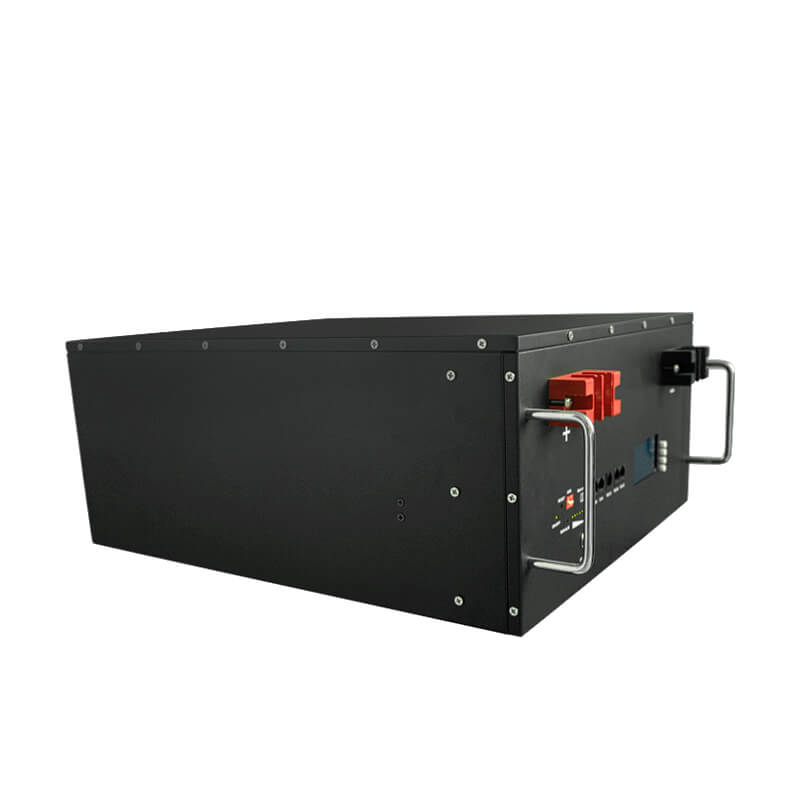

48V 200Ah Battery Storage Home

    Model: YD-DDTSSG48200

    Power:9600Wh

    Battery: LiFePO4

    Battery pack voltage range:DC40.5V~54V

    Standard charging current: ≤200A

    Standard discharge current: ≤200A

    Installation method: Rack-Mounted

    Product Weight: ≈80Kg

    Product Size: 530*442*221mm


    Custom: ODM | OEM | Shape | Size | Voltage

    MOQ: 1 pcs


Inquire Now

Tags: LiFePO4 ,


Battery

Capacity:

9600Wh

Cell Chemistry:

LiFePO4

Cycle life:

>6000

Management System:

BMS, Over Voltage Protection,Short Circuit Protection

Battery parameter

Rated voltage

48V

Battery pack voltage range:

40.5V~54V

Combination:

1P15S

Standard charging current:

≤200A

Standard discharge current:

≤200A

Dimensions

Weight:

80kg

Length:

53cm (20.86in)

Width:

44.2cm (17.4in)

Height:

22.1cm (8.7in)

General

Warranty:

3+2 Years

Operating Usage Temperature:

Charging: 0~45”℃ Discharging: -30~55°C

Lead-acid batteries are already a very backward battery. They require frequent maintenance, have a slow charging speed, are very heavy, and have a low energy density. LiFePO4 batteries are superior to lead-acid batteries in all aspects, such as longer service life, higher energy density, faster charging speed, higher safety, lower maintenance requirements, better temperature resistance, more environmentally friendly, higher discharge efficiency, and lower self-discharge rate.
