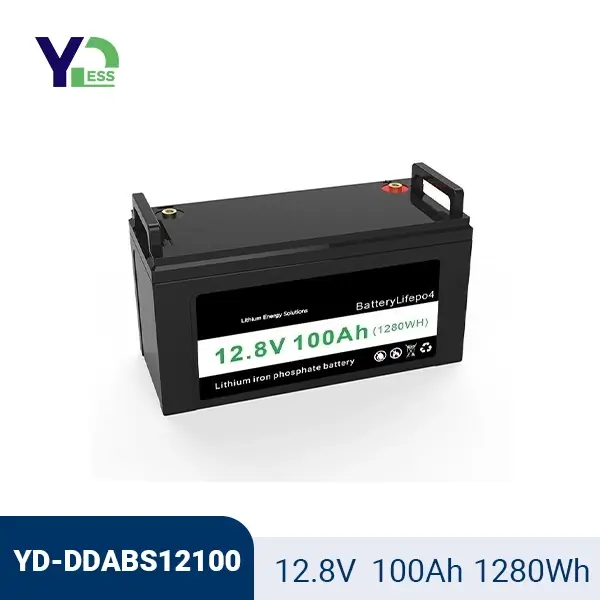

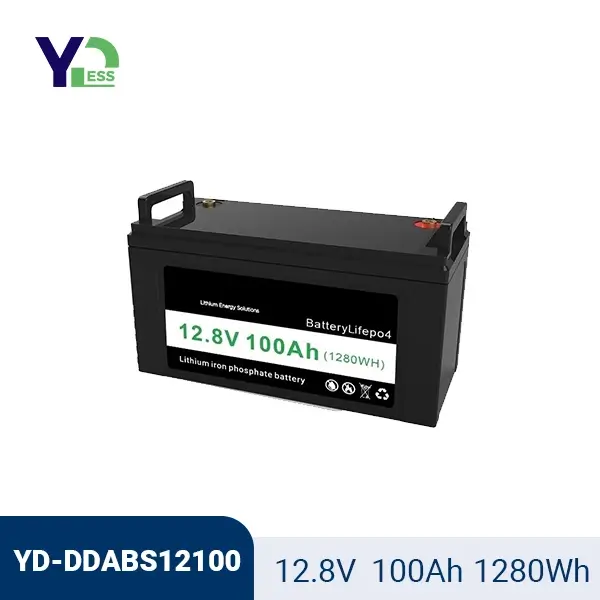

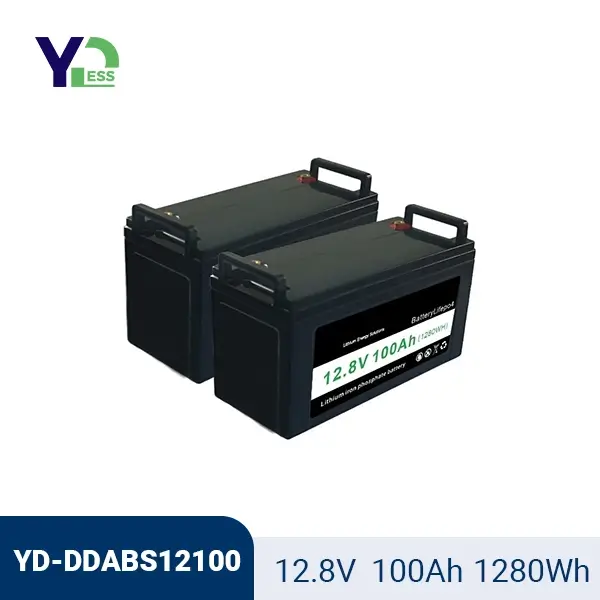

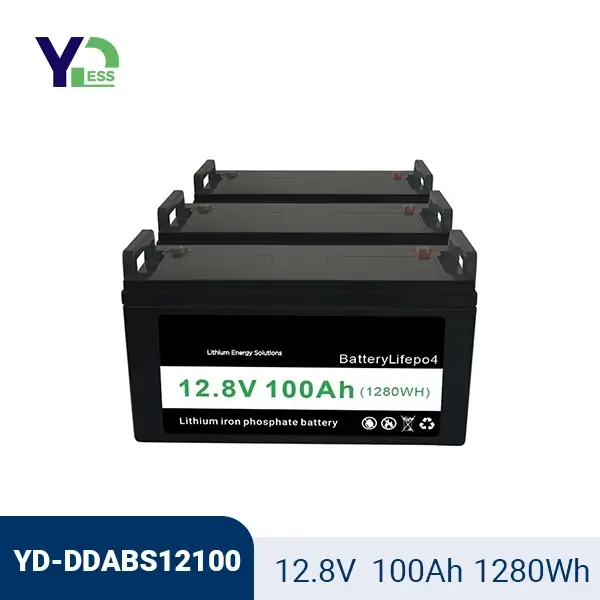

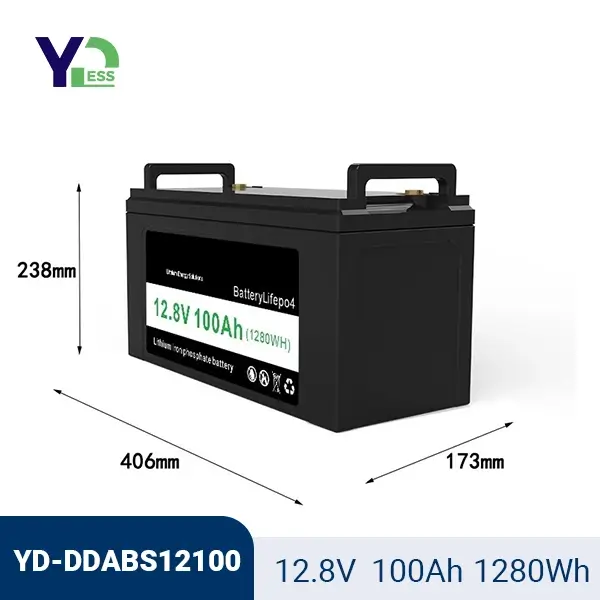

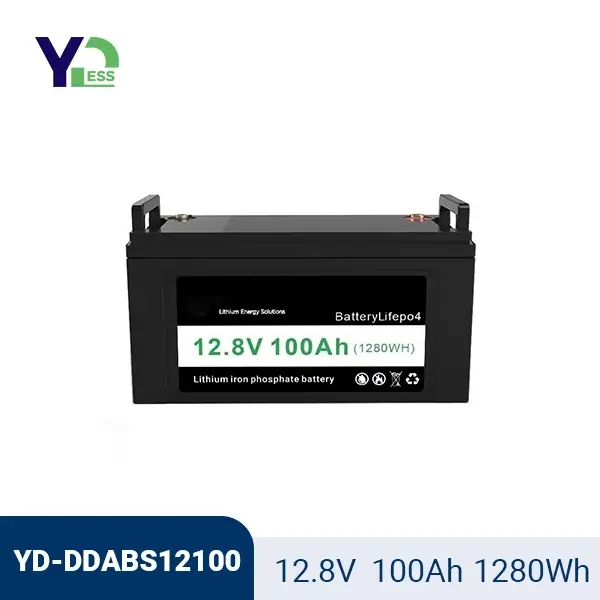

ABS Housing 12v 100ah LiFePO4 Battery

    Model: YD-DDABS12100

    Battery Type: LiFePO4 battery

    Rated Capacity: 1.28KWh

    Nominal Voltage: 12.8V

    Nominal Capacity: 100Ah

    Charging Current: 0.2C(Standard);1C(Max)

    Charging Method: CC & CV

    Voltage Range: 2.5V~3.65V

    Weight: ≤ 11KG

    Dimension: 330mm x 173mm x 220mm

Inquire Now

Tags: 100Ah ,

1

Download ABS Housing 12v 100ah LiFePO4 Battery Datasheet

Battery

Capacity:

1280Wh

Cell Chemistry:

LiFePO4

Cycle life:

≥3,600 Cycles(0.5C standard charge)

Management System:

BMS, Over Voltage Protection,Short Circuit Protection

Charging

Charging Current:

0.2C(Standard);1C(Max)

Charging Method:

CC & CV

Max Continuous Discharge Current:

100A

Dimensions

Weight:

12kg (26.45lbs)

Length:

33cm (12.99in)

Width:

17.3cm (6.81in)

Height:

22cm (8.66in)

General

Warranty:

2 Years

Operating Usage Temperature:

Charging: 0 ~ 60℃;| (32.0 - 140F)
Discharging: -20 ~ 60℃ | -20 - 60℃ (-4 - 140F)

Lead-acid batteries are already a very backward battery. They require frequent maintenance, have a slow charging speed, are very heavy, and have a low energy density. LiFePO4 batteries are superior to lead-acid batteries in all aspects, such as longer service life, higher energy density, faster charging speed, higher safety, lower maintenance requirements, better temperature resistance, more environmentally friendly, higher discharge efficiency, and lower self-discharge rate.
